Axial piston motors AE 3 - AE 45
Our axial piston motors of the AE series are built according to the swash plate principle and are characterized by their high power density, i.e. they produce a relatively high power at a small size and that at very high efficiencies of up to 95%.
In addition, they cover the entire range from low to high speeds.
At the same time, unlike other axial piston motors, they have almost perfect synchronization even at low speeds.
Performance characteristics
- Hydraulic-mechanical efficiencies up to 95%
- Low maintenance costs
- High absorption of radial and axial loads.
- Wide speed range
- High power density
- Uniform concentricity even at lowest speeds
Technical data
Displacement [cm3/rev] 2,8 – 45,0
Power [kW] up to 21,5
Operating speed range [rpm] 3 – 5250
Torque [Nm] up to 161
Motor specifications

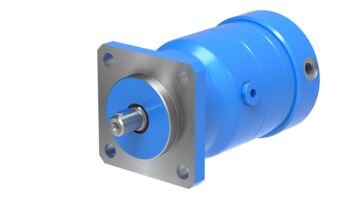

Hydraulic motor AE 3 - 5
Axial piston motors with constant displacement in swash plate principle
Vg = 2,86 cm³/rev – 5,15 cm³/rev
AE 3-5

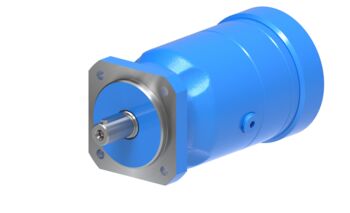

Hydraulic motors AE 10 - 21
Axial piston motors with constant displacement in swash plate principle
Vg = 11,4 cm³/rev – 21,3 cm³/rev
AE 10-21

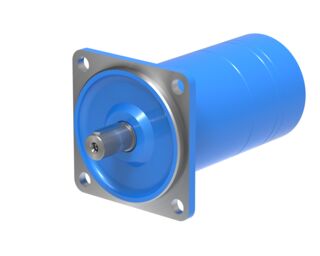

Hydraulic motor AE 22 - 45
Axial piston motors with constant displacement in swash plate principle
Vg = 22,5 cm³/rev – 45,0 cm³/rev
AE 22-45
Application areas of axial piston motors AE 3 - AE 45
Monopile production
Monopiles are long cylindrical tubes used to anchor offshore wind turbines in shallow waters. A monopile consists of several steel pipe sections welded together. Axial piston motors AE 16, for example, are used in the lining of the steel sheets for the production of the pipe sections.
